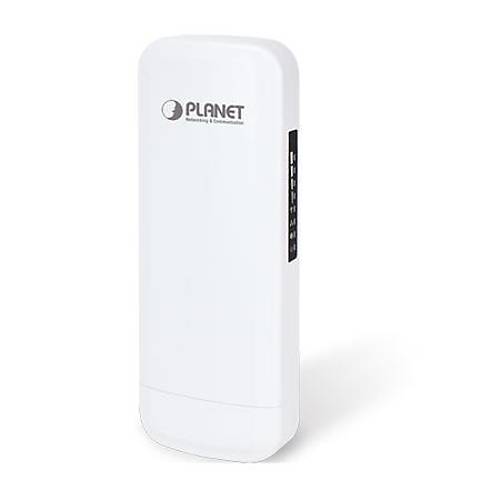

Planet PL-WBS-512AC 900Mbps 5Ghz CPE Mu-MIMO WAVE 2 14 dBi Antenli Outdoor Access Point

Name: Planet PL-WBS-512AC 900Mbps 5Ghz CPE Mu-MIMO WAVE 2 14 dBi Antenli Outdoor Access Point
Brand: PLANET
SKU: PL-WBS-512AC
Price: 4361.68 TRY
Availability: InStock
Rating: 0

PlatinPuan : 3.453.003

Fiyat	:	4.361,68 TL
Havale / EFT	:	4.252,64 TL

567,02 TL'den başlayan taksit seçenekleri için tıklayın.

Ürüne Oy Verin

^{Planet PL-WBS-512AC 900Mbps 5Ghz CPE Mu-MIMO WAVE 2 14 dBi Antenli Outdoor Access Point}

Hardware

Standard Support

IEEE 802.11a/n/ac
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x flow control
IEEE 802.11k, 802.11v, and 802.11r

Dimensions (W x D x H)

87 x 38 x 260 mm

Weight

405g

Power Requirements

48V DC IN,0.5A, IEEE 802.3 at PoE+ or
12V DC IN, 1.0A from DC Jack

Power Consumption (max.)

< 10W

Interface

Wireless IEEE 802.11a/n/ac, 2T2R
PoE: 1 x 10/100/1000BASE-TX, auto-MDI/MDIX, 802.3 at PoE In
LAN: 1x 10/100/1000BASE-TX, auto-MDI/MDIX

Button

Reset/Pair button, PtP Switch

Antenna

Built-in 14dBi directional antenna with dual polarization

Half-power beam width
Horizontal: 50 degrees
Vertical: 15 degrees

Data Rate

IEEE 802.11a: up to 54Mbps
IEEE 802.11n (20MHz): up to 150Mbps
IEEE 802.11n (40MHz): up to 300Mbps
IEEE 802.11ac (80MHz): up to 867Mbps

Media Access Control

CSMA/CA

Modulation

802.11 a/n/ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)

Frequency Band

FCC: 5.180~5.240GHz, 5.745~5.825GHz
ETSI: 5.180~5.700GHz

Operating Channels

FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 (9 channels)
ETSI: 36, 40, 44, 48, 100, 104, 108, 112, 116, 132, 136, 140 (12 channels)

5GHz channel list will vary in different countries according to their regulations.

Max. Transmit Power (dBm)

FCC: up to 25 ± 1dBm
ETSI: < 20dBm (EIRP)

Receiver Sensitivity (dBm)

Network Mode	Data Rate	Receive Sensitivity (dBm)
802.11a	6Mbps	-92
802.11a	54Mbps	-75
802.11n HT20	MCS0/MCS8	-91
802.11n HT20	MCS7/MCS15	-72
802.11n HT40	MCS0/MCS8	-88
802.11n HT40	MCS7/MCS15	-70
802.11ac VHT20	MCS0	-92
802.11ac VHT20	MCS8	-70
802.11ac VHT40	MCS0	-89
802.11ac VHT40	MCS9	-65
802.11ac VHT80	MCS0	-87
802.11ac VHT80	MCS9	-61

Environment & Certification

Operating Temperature

-20 ~ 70 degrees C

Operating Humidity

5 ~ 90% (non-condensing)

IP Level

IP55

ESD Protection

± 8kV air-gap discharge
± 4kV contact discharge

Surge Protection

± 4kV

Regulatory

CE, RoHS

Software

LAN

Static IP/DHCP
Supports IP-MAC binding

WAN Type (GW/WISP mode)

Static IP
Dynamic IP
PPPoE

Wireless Modes

Access Point
Gateway
Repeater
Super WDS
WISP

Channel Width

20MHz, 40MHz, 80MHz

Encryption Type

64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X

Wireless Security

Enable/Disable SSID Broadcast
Wireless Max. 32 MAC address filtering
User Isolation

Max. SSIDs

Max. Wireless Clients

64 per radio (50 is suggested, depending on usage)

Max. WDS Peers

4 (Up to 3 peers by using “One-click WDS”)

Wireless QoS

Supports Wi-Fi Multimedia (WMM)

Wireless Advanced

Auto Channel Selection
5-level Transmit Power Control (Max. (100%), Efficient (75%), Enhanced (50%), Standard (25%), Min. (12.5%))
Client Limit Control, Coverage Threshold
Wi-Fi channel analysis chart
Fast Roaming(IEEE 802.11k, 802.11r, 802.11v)

Status Monitoring

Device status, wireless client List
PLANET Smart Discovery
DHCP client table
System Log supports remote syslog server

VLAN

IEEE 802.1Q VLAN (VID: 3~4094)
SSID-to-VLAN mapping up to 4 SSIDs

Self-healing

Supports auto reboot settings per day/hour

Management

Remote management through PLANET DDNS/Easy DDNS
Configuration backup and restore
Supports UPnP
Supports IGMP Proxy
Supports PPTP/L2TP/IPSec VPN Pass-through
SNMP v1/v2c/v3 support, MIB I/II, Private MIB

Central Management

Applicable controllers: WAPC-500, WAPC-1000, NMS-500, NMS-1000V
