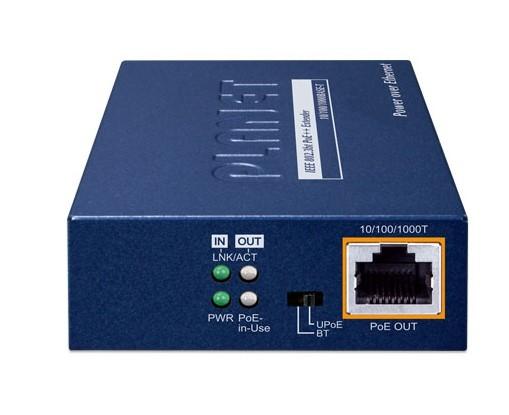

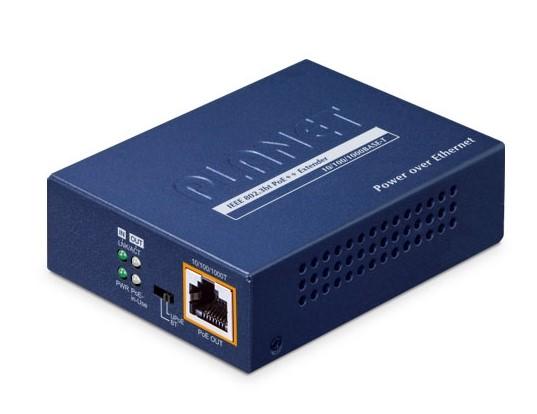

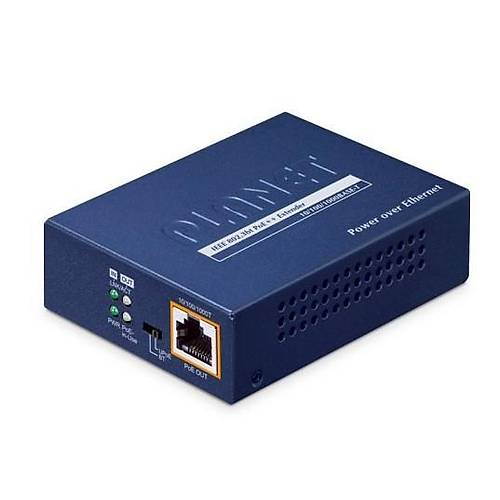

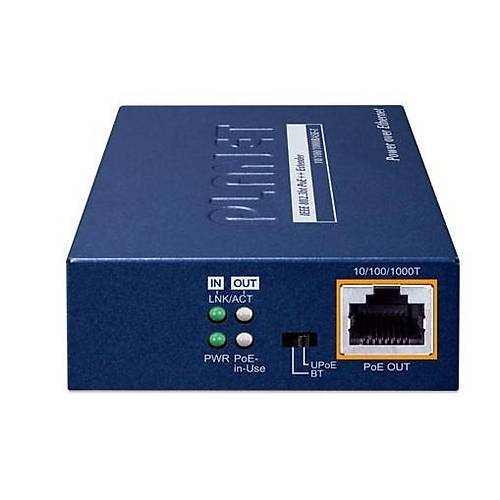

Planet PL-POE-E301 1 Port 802.3bt to 1 Port 802.3bt Gigabit PoE+ Extender

Name: Planet PL-POE-E301 1 Port 802.3bt to 1 Port 802.3bt Gigabit PoE+ Extender
Brand: PLANET
SKU: PL-POE-E301
Price: 3993.83 TRY
Availability: InStock
Rating: 0

PlatinPuan : 3.161.781

Fiyat	:	3.993,83 TL
Havale / EFT	:	3.893,98 TL

519,20 TL'den başlayan taksit seçenekleri için tıklayın.

Ürüne Oy Verin

Planet PL-POE-E301 1 Port 802.3bt to 1 Port 802.3bt Gigabit PoE+ Extender

Hardware Specifications

PoE IN

1 x 10/100/1000BASE-T Ethernet with IEEE 802.3bt/at/af PoE “Data + DC?in
auto MDI/MDI-X, auto-negotiation RJ45 connector

PoE OUT

1 x 10/100/1000BASE-T Ethernet with IEEE 802.3bt/at/af PoE ?Data + DC” out
auto MDI/MDI-X, auto-negotiation RJ45 connector

DIP Switch

PoE power feeding options (BT/UPOE) selection

Dimensions (W x D x H)

94 x 70 x 26 mm

Weight

258g

Power Requirements

IEEE 802.3bt PoE++ compliant with voltage within 52V-56V DC
IEEE 802.3af PoE compliant with voltage within 44V-56V DC

Power Consumption

2.4 watts (system maximum) /PoE Output at maximum 60 watts

Enclosure

Metal

Installation

Wall or DIN-rail mounting

Protection

ESD (Ethernet): 2KV
Surge (EFT for power) : 2KV

LED Indicators

?1 x PWR (Green)
?1 x PoE IN Data (Green)
?1 x PoE OUT Data (Green)
?1 x PoE Out : PoE-in-use (Green: BT PD; Amber UPOE PD)

Network Cable

10BASE-T: 4-Pair UTP Cat. 5 up to 100m (328ft)
100BASE-TX: 4-Pair UTP Cat. 5 up to 100m (328ft)
1000BASE-T: 4-Pair UTP Cat. 5e, 6, up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m, 328ft)

Switching Specifications

Data Rate

10/100/1000Mbps

Switch Architecture

Store-and-Forward

Switch Throughput

10Mbps:14880pps@64Bytes
100Mbps:148810pps@64Bytes
1000Mbps:1488000pps@64Bytes
