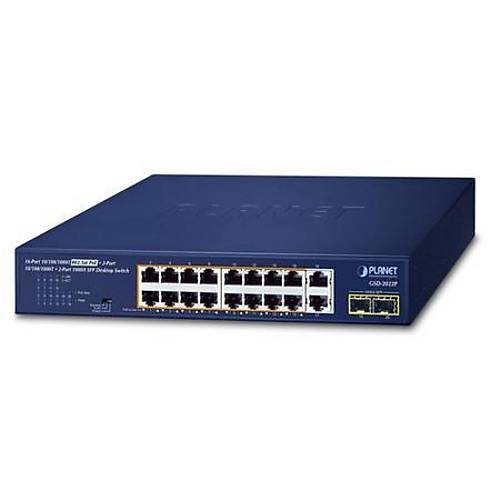

    Planet PL-GSD-2022P 16 Port Gigabit PoE+ 2 Port SFP 2 Port Gigabit PoE Switch

    Planet PL-GSD-2022P 16 Port Gigabit PoE+ 2 Port SFP 2 Port Gigabit PoE Switch Planet PL-GSD-2022P 16 Port Gigabit PoE+ 2 Port SFP 2 Port Gigabit PoE Switch
    Görsel 1
    Görsel 2
    PlatinPuan : 6.822.796
    Fiyat:
    8.618,27 TL
    Havale / EFT:
    8.402,81 TL
    1.120,38 TL'den başlayan taksit seçenekleri için tıklayın.
    Aynı Gün Kargo

    Ürüne Oy Verin

    Planet PL-GSD-2022P 16 Port Gigabit PoE+ 2 Port SFP 2 Port Gigabit PoE Switch


    16-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port 1000X SFP Desktop Switch

    Hardware Specifications
    10/100/1000BASE-T Copper Ports18 auto MDI/MDIX
    1000BASE-X SFP/mini-GBIC Slots2
    DIP SwitchSelectable operation mode
    ? Standard
    ? VLAN
    ? Extend
    LED IndicatorsSystem
    Power (Green)
    10/100/1000T RJ45 Interfaces
    10/100/1000 LNK / ACT (Green)
    PoE-in-Use(Amber)
    1000X SFP Interfaces
    1000 LNK / ACT (Green)
    Dimensions (W x D x H)280 x 180 x 44 mm (1U height)
    EnclosureMetal
    Weight1810g
    Power Requirements100~240V AC, 50/60Hz, 5A max.
    Power Consumption/DissipationMax. 201 watts/686 BTU
    Thermal Fan1
    ESD ProtectionContact discharge of ±6KV DC,
    Air discharge of ±8KV DC
    Surge Protection±6KV
    InstallationDesktop or rack-mount installation
    Switching
    Switch ArchitectureStore-and-Forward
    Switch Fabric40Gbps/non-blocking
    Switch Throughput@64bytes29.76Mpps
    MAC Address Table8K entries
    Jumbo Frame9216 bytes
    Flow ControlIEEE 802.3x pause frame for full duplex; back pressure for half duplex
    Power over Ethernet
    PoE StandardIEEE 802.3at Power over Ethernet Plus/PSE
    PoE Injector Ports16
    PoE Power Supply TypeEnd-span/Mid-span: 1/2/4/5 (+), 3/6/7/8 (-)
    PoE Power OutputPer port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
    Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
    PoE Power Budget185 watts
    Number of PDs, 7 watts16
    Number of PDs, 15.4 watts12
    Number of PDs, 30 watts6
    Standards Conformance
    Regulatory ComplianceFCC Part 15 Class A, CE
    Standards ComplianceIEEE 802.3 10BASE-T
    IEEE 802.3u 100BASE-TX
    IEEE 802.3ab Gigabit 1000BASE-T
    IEEE 802.3z Gigabit SX/LX
    IEEE 802.3x flow control and back pressure
    IEEE 802.3af Power over Ethernet
    IEEE 802.3at Power over Ethernet Plus
    IEEE 802.3az Energy-Efficient Ethernet
    Environment
    OperatingTemperature: 0 ~ 50 degrees C
    Relative Humidity: 5 ~ 95% (non-condensing)
    StorageTemperature: -10 ~ 70 degrees C
    Relative Humidity: 5 ~ 95% (non-condensing)
    Diğer Özellikler
    Stok KoduPL-GSD-2022P
    MarkaPLANET
    Stok DurumuVar
    4711605285582
