Lindy LIN-38247 4 Port Giriş 4 Port Çıkış 18G Kumandalı Auadio HDMI Switch

Lindy LIN-38247 4 Port Giriş 4 Port Çıkış 18G Kumandalı Auadio HDMI Switch

Technical details

Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 2.0
• Supported Bandwidth: 18Gbps
• Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• Supported Audio: HDMI Audio Pass-through Up to 5.1CH (SPDIF)
• IR Support: 38kHz
• CEC Support: -
• Serial Interface: RS232
• LED / LCD Display: LCD

• Control: IR, RS232, IP Webbrowser Control (Default IP: 192.168.1.168)

• Special Features: EDID Management, individual audio out ports

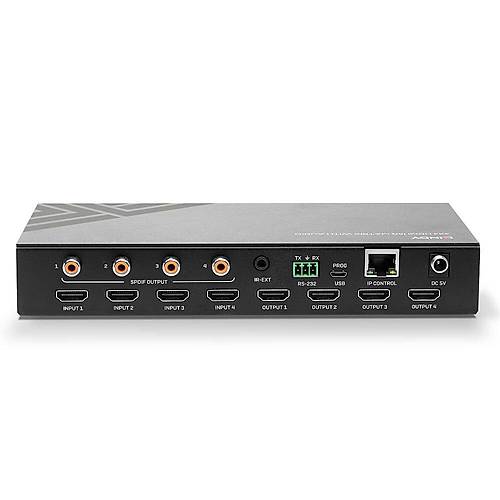

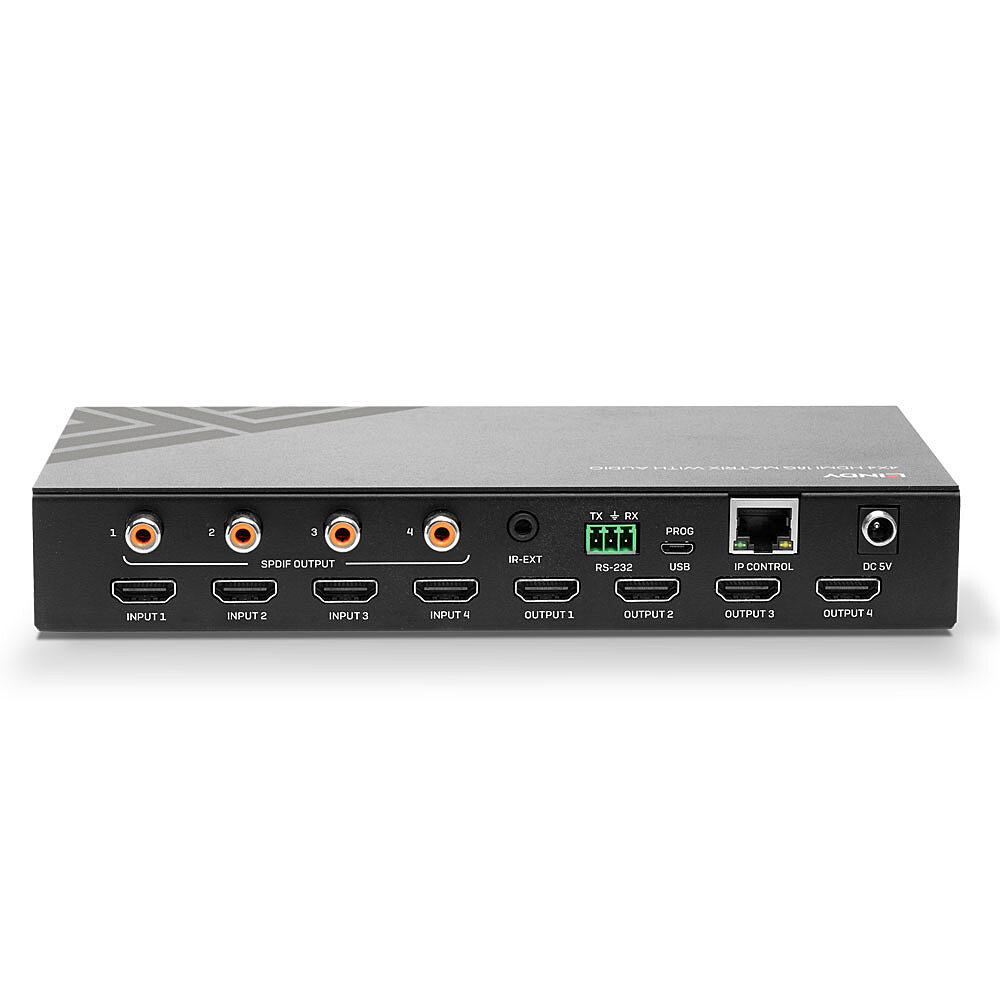

Connectors

• Input: 4 x HDMI (Female)
• Output: 4 x HDMI (Female), 4 x SPDIF (Female)
• Control: RS232 (Female), RJ45 (Female), 3.5mm (Female)
• Power: 5.5/2.1mm DC socket

Physical Properties

• Dimensions (approx.) WxDxH: 216x115x34mm (8.5x4.53x1.34in)
• Housing Material: Metal
• Net Weight: 0.655kg (1.44lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20 - 90% (non-condensing)
• Power Requirements: 5VDC 3A
• Colour: Black

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 255x202x60mm (10.04x7.95x2.36in)
• Gross Weight: 1.155kg (2.55lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

• 4x4 HDMI 18G Matrix
• Multi-country Power Supply (UK, EU, US & AUS)
• IR Extension Cable, 1.6m
• IR Remote including CR2025 3V battery
• Mounting brackets, screws & rubber feet
• RS-232 screw terminal
• Quick Install Guide

Purchasing Information

• No.: 38247
• EAN: 4002888382472
