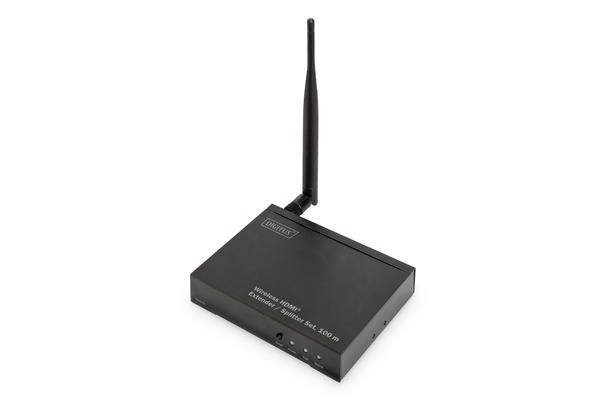

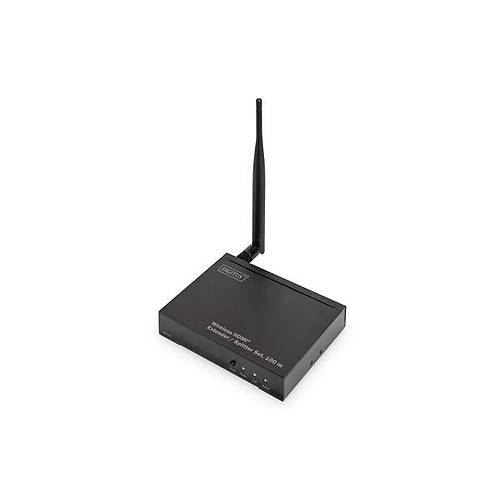

Receiver unit for Wireless HDMI® / Splitter Extender Set, 100 m

• Receiver connections:
• 1x HDMI (output)
• 1x IR (output)
• 1x power adaptor (5 V/DC)
• Transmission distance 1:1 connection: up to 100 m (unobstructed view)
• Transmission distance 1:2 connection: up to 75 m (unobstructed view)
• Transmission distance 1:3 connection: up to 55 m (unobstructed view)
• Transmission distance 1:4 connection: up to 35 m (unobstructed view)
• Frequency: 5 GHz
• Wireless standard: 802.11a
• HDMI transfer rate: 6.75 Gbps
• Colour depth: 12 bits per channel
• Interlaced resolutions: 480i, 576i, 1080i (50/60 Hz)
• Progressive resolutions: 480p, 576p, 720p, 1080p (50/60 Hz)
• Compression: H.264
• Audio sampling rate: 44.1 / 48 kHz
• HDMI version: 1.3
• HDCP version: 1.3
• Frequency range of IR signals: 20 – 60 Hz
• Transmission latency: 150 – 200 ms
• LED indicators: Power / Link / Status
• Reset button
• Operation temperature: 0 °C – 50 °C
• Storage humidity: 5% – 90% RH (non-condensing)
• Power adaptor: 5 V/DC / 2 A
• Receiver unit power consumption: 3.0 W
• Dimensions: L 13 x W 10 x H 2.6 cm
• Receiver weight: 145 g
• Enclosure material: Metal
• Note: The transmission distance with limited visibility cannot be determined arbitrarily and depends on local circumstances
• Note: Walls, glass, etc. restrict signal coverage or cause signal loss

Package content

• 1x receiver unit
• 1x power adaptor, cable length: 1.2 m
• 1x antenna
• 1x IR connection cable, 1.2 m
• 1x mounting material for wall mounting
• 1x user manual
