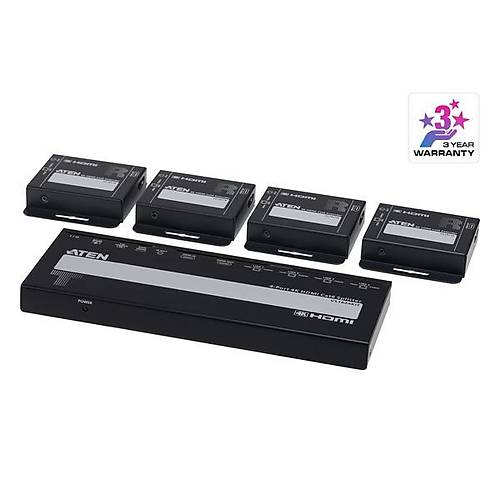

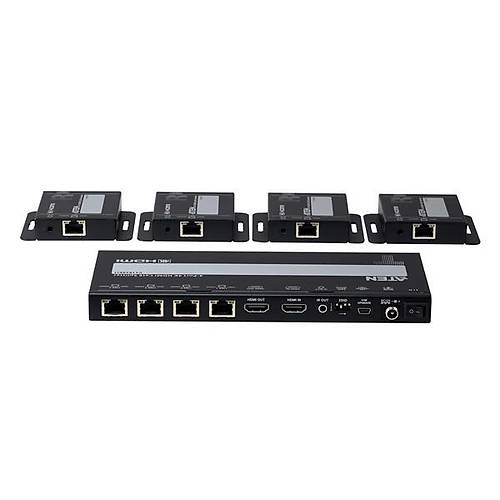

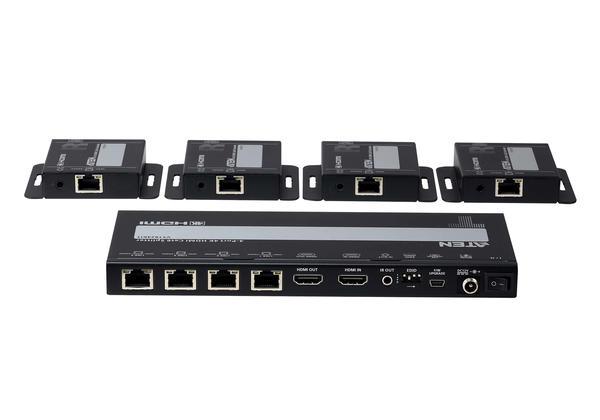

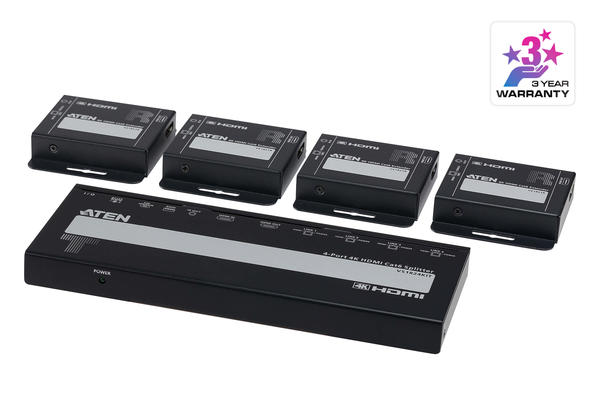

| Function | VE1821R | VS1824T |
| Video Input |
| Interfaces | N/A | 1 x HDMI Type A Female (Black) |
| Impedance | N/A | 100 Ω |
| Max. Distance | N/A | 3 m |
| Video Output |
| Interfaces | 1 x HDMI Type A Female (Black) | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ω | 100 Ω |
| Max. Distance | 3 m | 3 m |
| Video |
| Max. Data Rate | 10.2Gbps (3.4Gbps per lane) | 10.2Gbps (3.4Gbps per lane) |
| Max. Pixel Clock | 340 MHz | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K)
HDCP1.4 Compatible | HDMI (3D, Deep Color, 4K)
HDCP1.4 Compatible |
| Max. Resolutions / Distance | Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910); 1080p@35m (Cat5e), 50m (Cat 6/2L-2910)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) | Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910); 1080p@35m (Cat5e), 50m (Cat 6/2L-2910)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio |
| Input | N/A | 1 x HDMI Type A Female (Black) |
| Output | 1 x HDMI Type A Female (Black) | 1 x HDMI Type A Female (Black) |
| Control |
| IR Channel | 1 x Mini Stereo Jack Female (Black);
(NOTE1) | 1 x Mini Stereo Jack Female (Black);
(NOTE1) |

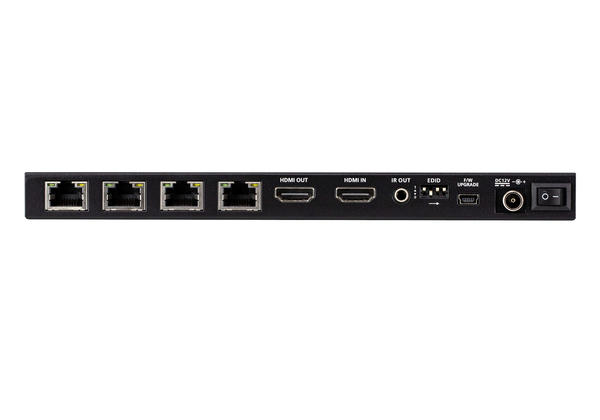

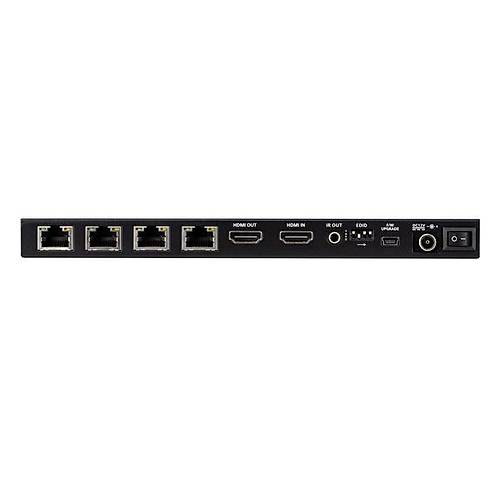

| Connectors |
| Unit To Unit | 1 x RJ-45 Female | 4 x RJ-45 Female |
| Power | 1 x RJ-45 Female
(Power over Cable, power supply from VS1824T) | 1 x DC Jack (Black) with locking |
| Maintenance | N/A | Micro USB for F/W upgrade |
| Switches |
| Mode Switch | N/A | EDID Mode Selection |
| Power | N/A | Power ON/OFF |
| Power Consumption | 11WBTU/h
Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. | 11WBTU/h
Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental |
| Operating Temperature | 0 - 40°C | 0 - 40°C |
| Storage Temperature | -20 - 60°C | -20 - 60°C |
| Humidity | 20 - 90% RH, Non-Condensing | 20 - 90% RH, Non-Condensing |
| Physical Properties |
| Housing | Metal | Metal |
| Weight | 0.12 kg ( 0.28 lb ) | 0.44 kg ( 0.99 lb ) |
| Dimensions (L x W x H) with bracket | 7.95 x 6.80 x 1.65 cm
(3.13 x 2.68 x 0.65 in.) | N/A (Housing comes without bracket) |
| Dimensions (L x W x H) without bracket | 5.75 x 6.80 x 1.65 cm
(2.26 x 2.68 x 0.65 in.) | 21.00 x 8.20 x 1.80 cm
(8.27 x 3.23 x 0.71 in.) |
| Note | NOTE 1: The IR channel of the receiver is a unidirectional bypass channel, transmitting data from receiver to transmitter.
NOTE 2: The maximum power consumption assumes that all receivers in the package are installed. | NOTE 1: The IR channel of the receiver is a unidirectional bypass channel, transmitting data from receiver to transmitter.
NOTE 2: The maximum power consumption assumes that all receivers in the package are installed. |
