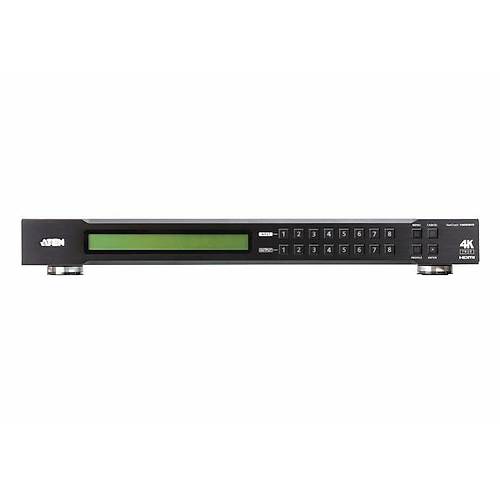

    Aten VM0808HB 8 x 8 True 4K RJ45 RS232 HDMI Matrix Switch

    Aten VM0808HB 8 x 8 True 4K RJ45 RS232 HDMI Matrix Switch Aten VM0808HB 8 x 8 True 4K RJ45 RS232 HDMI Matrix Switch
    Görsel 1
    Görsel 2
    PlatinPuan : 70.224.855
    Fiyat:
    88.705,08 TL
    Havale / EFT:
    86.487,45 TL
    11.531,66 TL'den başlayan taksit seçenekleri için tıklayın.
    Aynı Gün Kargo

    Ürüne Oy Verin

    Aten VM0808HB 8 x 8 True 4K RJ45 RS232 HDMI Matrix Switch


    • Connects any of 8 HDMI sources to any of 8 HDMI displays
    • Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
    • Supports HDR10+
    • Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
    • View and control via ATEN Video Matrix Control App in a swift and agile way
    • EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
    • Signaling rates up to 6 Gbits for flawless true 4K output
    • Supports Dolby True HD and DTS HD Master audio
    • HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
    • Supports Consumer Electronics Control (CEC)
    • Power-on Detection – switches to the next powered-on source when one source is powered off
    • ESD protection for HDMI
    • Supports ATEN’s LockPro™ HDMI cable lock for secure HDMI cable connections
    • Firmware upgradeable
    • Rack mountable (1U design)



    Video Input
    Interfaces8 x HDMI Type A Female (Black)
    Impedance100 Ω
    Max. Distance5.0 m / 4K@60Hz (4:4:4)
    Video Output
    Interfaces8 x HDMI Type A Female (Black)
    Max. Distance5m / 4K@60Hz (4:4:4)
    15m / 1920 x 1200
    Impedance100 Ω
    Video
    Max. Pixel Clock600 MHz
    Max. ResolutionUp to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
    Max. Data Rate18 Gbps( 6 Gbps Per Lane)
    ComplianceHDMI (3D, 4K, Deep Color)
    HDCP 2.2 Compatible
    Consumer Electronics Control (CEC)
    Control
    RS-232Connector: 1 x DB-9 Female (Black)
    Baud rate and protocol:
    Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
    IR1 x Mini Stereo Jack Female (Black)
    Ethernet1 x RJ-45 Female
    EDID SettingsEDID Mode: Default / Port 1 / Remix / Customized
    (EDID Wizard Support)
    Environmental
    Operating Temperature0-40°C
    Humidity0 - 80% RH, Non-Condensing
    Storage Temperature-20 - 60°C
    Physical Properties
    Weight3.99 kg ( 8.79 lb )
    HousingMetal
    Dimensions (L x W x H)43.24 x 26.23 x 4.40 cm
    (17.02 x 10.33 x 1.73 in.)
    Connectors
    Power1 x 3-Prong AC Socket
    Carton Lot1 pc
    Power ConsumptionAC110V:38.1W:179BTU
    AC220V:37.8W:177BTU
    Power
    Maximum Input Power Rating100-240 VAC; 50-60 Hz; 1.0A





    • 1x VM0808HB 8 x 8 True 4K HDMI Matrix Switch
    • 1x Power Cord
    • 1x IR Remote Control
    • 1x IR Receiver
    • 1x Rack Mounting Kit
    • 1x User Instructions

    Diğer Özellikler
    Stok KoduATEN-VM0808HB
    MarkaATEN
    Stok DurumuVar
    4719264646836
