1-Local /2-Remote Access

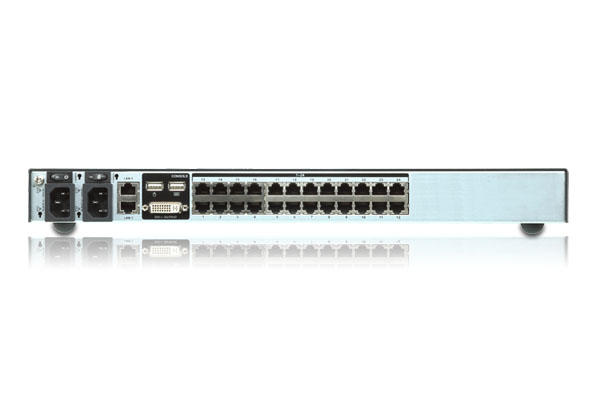

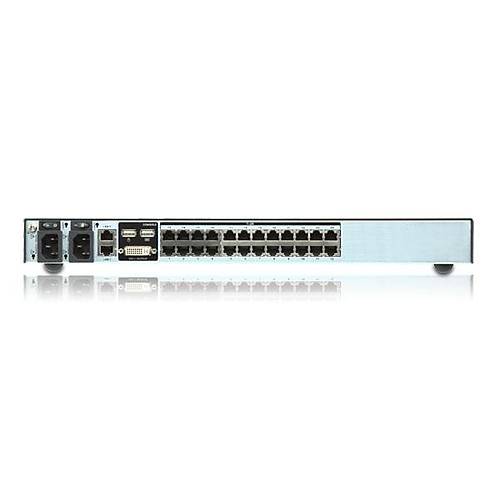

24-Port Cat 5 KVM over IP Switch with Virtual Media (1920 x 1200)
- Exclusive KN Series Features
- High-Grade Security – supports FIPS 140-2 level 1 security standards
- Advanced FPGA graphics processor with Full HD resolutions up to 1920 x 1200
- 2x faster virtual media transmission speeds
- Simultaneously share one local console and two independent connections to servers
- Hardware
- High Port Density – RJ-45 connectors for up to 40 ports in 1U housing
- Laptop USB Console (LUC) – a dedicated USB port directly connects to a laptop for easy console operation
- Two separate buses for remote KVM over IP access
- Two 10/100/1000 Mbps NICs for redundant LAN or dual IP operation
- Blade server support
- Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
- Local console provides USB keyboard and mouse support
- Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
- Audio enabled
- Dual Power Supply
- High Video Resolutions – up to 1920 x 1200 @ 60 Hz with 24-bit color depth at the switch’s local console and on remote displays
- Monitor and control up to 24 computers on a single level or control up to 384 computers in a cascade*
*Cascade-compatible KVM switches include the following: CS9134, CS9138, KH1508A and KH1516A. - Management
- Supports 64 user accounts – up to 32 users can simultaneously share control
- Green IT Fan – speed varies according to temperature
- Event logging and Windows-based Log Server support
- Critical system event notification via SMTP email; SNMP trap and Syslog support
- Customizable events notification
- Firmware upgradeable
- Adapter ID Function – stores port information, allowing administrators to relocate servers to different ports without having to re-configure adapters or switches
- Port Share Mode – allows multiple users to gain access to a server simultaneously
- Supported by ATEN's CC2000 Management Software
- IPv6 capable
- Easy-to-Use Interface
- ATEN Exclusive Panel ArrayTM Mode – monitor all ports in a grid display of all desktops at both the local and remote screen
- Multiplatform client support (Windows, Mac OS X, Linux, Sun)
- Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera and Netscape
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software
- Launch multiple virtual remote desktop sessions to control multiple servers at the same time
- Fullscreen or scalable virtual remote desktop window
- Keyboard/Mouse Broadcast – keyboard and mouse signals can be duplicated across all servers at once
- Video syncing with the local console – local console monitor’s EDID information stored on the KVM Adapter Cables for display resolution optimization
- Advanced Security
- Remote authentication support: RADIUS, LDAP, LDAPS and Microsoft Active Directory
- Supports TLS 1.2 encryption and RSA 2048-bit certificates to secure browser logins
- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4 or Random for independent Keyboard/Mouse, video and virtual media data encryption
- Supports IP/MAC address filtering
- Configurable user and group permissions for server access and control
- Automated CSR creation utility and third-party CA certificate authentication
- Virtual Media
- Virtual media enables applications, OS patching, software installations and diagnostic testing
- Works with USB-enabled servers at the operating system and BIOS level
- Supports DVD/CD drives, USB mass storage devices, hard drives and ISO images
- Virtual Remote Desktop
- Video quality can be adjusted to optimize data transfer speeds; monochrome color depth, threshold and noise settings reduce data transmission to lower bandwidth
- Fullscreen or scalable window for desktop sessions
- Message Board for communication among remote users
- Mouse DynaSync – automatically synchronizes the local and remote mouse movements
- Exit Macro support
- On-screen keyboard with multi-language support
- BIOS-level access for troubleshooting
| Computer Connections |
| Direct | 24 |
| Maximum | 384 (via Cascade KVM Switches) |
| Console Connections |
| Local | 1 |
| Remote | 2 |
| Port Selection | Pushbuttons, Hotkeys, GUI |
| Connectors |
| Console Ports | 2 x USB Type A Female (White)
1 x DVI-I Female (White) |
| KVM Ports | 24 x RJ-45 Female (Black) |
| USB Port | 3 x USB Female (White) |
| Audio | 2 x Audio Jack Female (Pink; Green) |
| Laptop USB Console (LUC) Port | 1 x Mini-USB Female (Black) |
| LAN Ports | 2 x RJ-45 Female (Black) |
| Power | 2 x IEC 60320/C14 |
| Switches |
| Power | 2 x Rocker Switches |
| Port Selection | 2 x Pushbuttons |
| Reset | 1 x Semi-recessed Pushbutton |
| LEDs |
| Online / Selected | 24(Green/Orange) |
| Power | 2 (Blue) |
| Link 10 / 100 / 1000 Mbps | 2 (Red/Orange/Green) |
| Emulation |
| Keyboard / Mouse | PS/2; USB |
| Video |
| Local | 1920 x 1200 @ 60Hz |
| Remote | 1920 x 1200 @ 60Hz |
| Maximum Input Power Rating | 100–240V~ ; 50-60Hz; 1A |
| Power Consumption |
| Single Power | 110V/32.78W; 220V/33.44W |
| Dual Power | 110V/18.81W; 220V/19.36W (per input) |
| Scan Interval | 1 – 255 Sec |
| Environmental |
| Operating Temperature | 0 - 40˚C |
| Storage Temperature | -20 - 60˚C |
| Humidity | 0 - 80% RH, Non-condensing |
| Physical Properties |
| Housing | Metal |
| Weight | 5.48 kg ( 12.07 lb ) |
| Dimensions (L x W x H) | 43.36 x 41.21 x 4.40 cm
(17.07 x 16.22 x 1.73 in.) |
- 1x KN2124VA KVM over IP Switch
- 2x Power Cords
- 1x Mounting Kit
- 2x Lok-U-Plugs
- 1x Lok-U-Plug Installation Tool
- 1x Foot Pad Set (4 pcs.)
- 1x User Instructions
| Diğer Özellikler |
|---|
| Stok Kodu | ATEN-KN2124VA |
| Marka | ATEN |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
4719264644122
