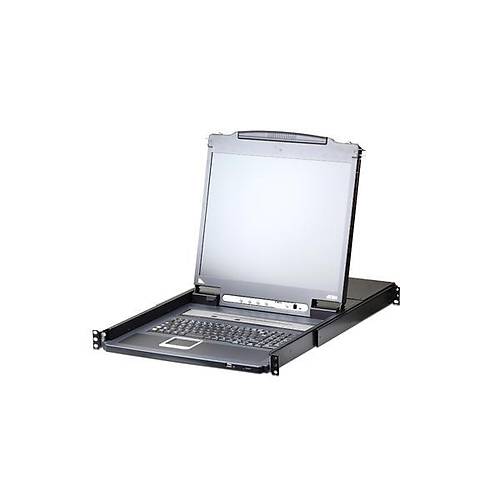

Aten CL5708IMt 8 Port Vga 17 inch Slıdeaway USB 2.0 Kvm Switch

8-Port PS/2-USB VGA LCD KVM over IP Switch with 17" LED-backlit LCD monitor in a Slideaway™, Turkish keyboard, Daisy-Chain Port and USB Peripheral Support

• Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated KVM console with 17" LED-backlit LCD monitor in a Slideaway™ housing
• Space saving technology - up to two consoles (one bus) control up to 8 computers
• Daisy chain up to 15 additional units – control up to 128 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
• Extra console port – manage computers from an external console (VGA monitor, USB or PS/2 keyboard and mouse)
• Superior video quality - up to 1280 x 1024 @75 Hz; DDC2B for the local console; up to 1920 x 1200 @ 60Hz / 24 bit color depth for remote sessions
• Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
• LCD module USB port allows connected computers to access USB peripherals*
• Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position
• Hot pluggable - add or remove computers without having to power down the switch
• Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
• Supports multimedia USB keyboards for Windows, Mac and Sun
• Supports external USB mouse
• Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
• Rack mountable in a 1U system rack
• LCD module rotates up to 115 degrees for a more comfortable viewing angle
  * The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.



• Management
• Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
• Up to 32 concurrent logins
• Multilanguage web UI support featuring a tree-structured local and remote OSD
• Adjustable video quality for flexible adaptation to diverse network environments
• Auto Scan mode enables continuous monitoring of user-selected computers
• Broadcast mode: operations from the keyboard can be simultaneously performed on all selected computers on the installation (software installation, system-wide shutdown, etc.)
• Firmware upgrades to all the daisy-chained KVM switches (CS1708A, CS1716A) at the same time via the daisy-chain cable
• Integration with CC2000 Centralized Management Software
• Backup and restore configuration and user account settings
• Event logging
• IPv6 capable



• Ease-to-Use Interface
• Browser-based and AP GUIs, together with a menu-driven OSD for the local console, provide a powerful, intuitive, user-friendly, multi-language interface to minimize user training time and increase productivity
• Multiplatform support - Windows, Linux, Mac, and Sun
• Multi-browser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
• Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view
• Windows client and Java client software support; Java client works with all operating systems
• Beeper on/off via hotkey and OSD
• Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese



• Advanced Security
• Secure keyboard/mouse/video transmission via RC4 128 bit encryption
• Supports TLS 1.2 data encryption and RSA 2048 bit certificates for secure user logins from a browser
• Two level password security - only authorized users can view and control computers; up to 64 user accounts with separate profiles for each
• External (Remote) authentication support: RADIUS, LDAP, LDAPS, MS Active Directory
• Support for IP/MAC Filter
• Local and remote access logged and authenticated



• Virtual Remote Desktop
• Resizable remote desktop window
• Message board allows logged-in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
• Mouse DynaSync™
• On-screen keyboard with multi-language support
• BIOS-level access



• 1x CL5708I LCD KVM over IP Switch with standard Rack Mount Kit
• 2x Custom KVM Cables (VGA, USB; 1.8 m/6 ft)
• 1x Custom Console Cable (VGA, USB, PS/2; 27 cm/0.88 ft)
• 1x Firmware Upgrade Cable
• 1x Power Cord
• 1x User Instructions



Function	CL5708IM	CL5708IN
Computer Connections
Direct	8	8
Maximum	128 (via Daisy-chain)	128 (via Daisy-chain)
Port Selection	OSD, Hotkey, Pushbuttons	OSD, Hotkey, Pushbuttons
Connectors
External Console Ports	1 x SPHD-18 Male (Yellow)	1 x SPHD-18 Male (Yellow)
External Mouse Port	1 x USB Type-A Female	1 x USB Type-A Female
KVM Ports	8 x SPHD-17 Female (Yellow)	8 x SPHD-17 Female (Yellow)
Daisy Chain Ports	1 x DB-25 Male (Black)	1 x DB-25 Male (Black)
Firmware Upgrade	1 x RJ-11 Female	1 x RJ-11 Female
Power	1 x 3-prong AC Socket	1 x 3-prong AC Socket
USB Port	1 x USB Type A Female	1 x USB Type A Female
LAN Ports	1 x RJ-45 Female	1 x RJ-45 Female
Switches
Reset	1 x Semi-recessed Pushbutton	1 x Semi-recessed Pushbutton
Power	1 x Rocker Switch	1 x Rocker Switch
Firmware Upgrade	1 x Switch	1 x Switch
LCD Adjustment	4 x Pushbutton	4 x Pushbutton
LCD On/Off	1 x LED Pushbutton (Orange)	1 x LED Pushbutton (Orange)
Port Selection	2 x Pushbutton	2 x Pushbutton
Station Selection	2 x Pushbutton	2 x Pushbutton
LEDs
Port ID	2 x 7-segment LED Display (Yellow)	2 x 7-segment LED Display (Yellow)
Station ID	2 x 7-segment LED Display (Yellow)	2 x 7-segment LED Display (Yellow)
Power	1 (Dark Green)	1 (Dark Green)
Lock	1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)	1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
Online	8 x (Orange)	8 x (Orange)
10/100 Mbps	1 (Orange/Green)	1 (Orange/Green)
Panel Spec
LCD Module	17" TFT-LCD	19" TFT-LCD
Response time	5 ms	5 ms
Viewing Angle	170° (H), 160° (V)	170° (H), 160° (V)
Pixel Pitch	0.264 mm x 0.264 mm	0.294 mm x 0.294 mm
Support Color	16.7M colors	16.7M colors
Contrast Ratio	1000:1	1000:1
Luminance	250 cd/m²	250 cd/m²
Emulation
Keyboard / Mouse	PS/2, USB	PS/2, USB
Video
Local	1280 x 1024 @75 Hz; DDC2B	1280 x 1024 @75 Hz; DDC2B
Remote	1920 x 1200 @60 Hz	1920 x 1200 @60 Hz
Scan Interval	1-255 sec.	1-255 sec.
Maximum Input Power Rating	100-240V AC, 50-60Hz, 1A	100-240 VAC, 50-60Hz, 1A
Power
Consumption	120V/15.2W; 230V/16W	120V/24W; 230V/25W
Environmental
Operating Temperature	0-50°C	0-50°C
Storage Temperature	-20-60°C	-20-60°C
Humidity	0-80% RH, Noncondensing	0-80% RH, Noncondensing
Physical Properties
Housing	Metal + Plastic	Metal + Plastic
Weight	13.49 kg ( 29.71 lb )	13.41 kg ( 29.54 lb )
Dimensions (L x W x H)	48.00 x 64.27 x 4.40 cm (18.9 x 25.3 x 1.73 in.)	48.00 x 68.92 x 4.40 cm (18.9 x 27.13 x 1.73 in.)
