    Aten CE920 100 Mt DISPLAY PORT to CAT USB 4K HDBaeT 2.0 DISPLAY PORT Mesafe Uzatma Cihazı

    Aten CE920 100 Mt DISPLAY PORT to CAT USB 4K HDBaeT 2.0 DISPLAY PORT Mesafe Uzatma Cihazı Aten CE920 100 Mt DISPLAY PORT to CAT USB 4K HDBaeT 2.0 DISPLAY PORT Mesafe Uzatma Cihazı
    Görsel 1
    Görsel 2
    PlatinPuan : 37.525.361
    Fiyat:
    47.400,46 TL
    Havale / EFT:
    46.215,45 TL
    6.162,06 TL'den başlayan taksit seçenekleri için tıklayın.
    Aynı Gün Kargo Kargo Bedava

    Ürüne Oy Verin

    Satıcıya Danış

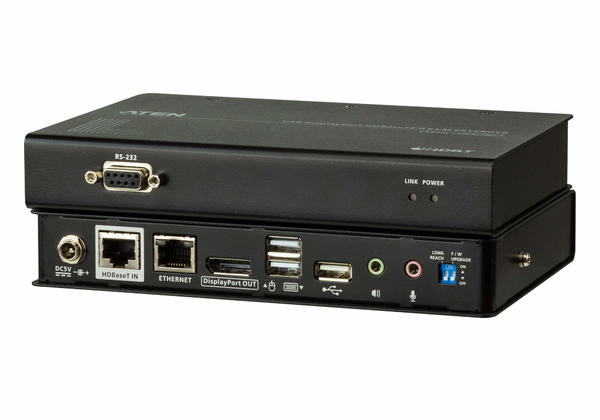

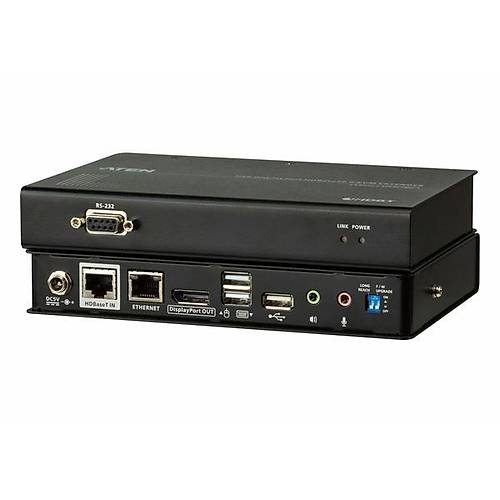

    USB DisplayPort HDBaseT™ 2.0 KVM Extender (4K@100 m)

    • Supports HDBaseT™ 2.0 technology
      - Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable
      - Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
      - Status detection and LED indication for HDBaseT™ signal transmission on remote unit
    • EDID Buffer for smooth power-up and the highest quality display
    • Long distance with superior video quality
      - HDBaseT™ Standard mode up to 4K @ 100m (Cat 6 / 6a / 2L-2910)
      - HDBaseT™ Long-Reach mode up to 1080P @ 150m
    • Long Reach mode switch – switches between HDBaseT™ Standard and Long Reach modes in a snap
    • USB 2.0 full speed ports – ensures fast transmission speeds for peripherals
    • HDCP Compatible
    • Supports individual 2-channel stereo audio for high-quality audio applications
    • Supports PC wakeup function via single pushbutton
    • Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)



    Function CE920L CE920R
    Connectors
    Console Ports N/A 1 x DisplayPort Female (Black)
    3 x USB Type A Female
    1 x Mini Stereo Jack Female (Green)
    1 x Mini Stereo Jack Female (Pink)
    1 x RJ-45 Female (Black)
    KVM Ports 1 x DisplayPort Female (Black)
    1 x USB Type B Female (White)
    1 x Mini Stereo Jack Female (Green)
    1 x Mini Stereo Jack Female (Pink)
    1 x RJ-45 Female (Black)    		 N/A
    RS-232 1 x DB-9 Female (Black) 1 x DB-9 Male (Black)
    Power 1 x DC Jack with locking 1 x DC Jack with locking
    Unit To Unit 1 x RJ-45 Female (Black) 1 x RJ-45 Female (Black)
    LEDs
    Power 1 (Green) 1 (Green)
    Link 1 (Orange) 1 (Orange)
    Video Output N/A 1 (Orange)
    Switches
    Long Reach Mode Switch 1 x Slide Switch 1 x Slide Switch
    Firmware Upgrade 1 x Slide Switch 1 x Slide Switch
    Pushbuttons
    Wakeup button N/A 1 x Push button
    Video Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6)
    1080P@100m (Cat 5e/6/6a)
    *4K supported:
    4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)    		 Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6)
    1080P@100m (Cat 5e/6/6a)
    *4K supported:
    4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
    Power Consumption DC5V:3.99W:19BTU DC5V:6.74W:47BTU
    Environmental
    Operating Temperature 0–40°C 0–40°C
    Storage Temperature -20–60°C -20–60°C
    Humidity 0–80% RH, Non-condensing 0–80% RH, Non-condensing
    Physical Properties
    Housing Metal Metal
    Weight 0.63 kg ( 1.39 lb ) 0.64 kg ( 1.41 lb )
    Dimensions (L x W x H) 18.20 x 12.19 x 2.87 cm
    (7.17 x 4.8 x 1.13 in.)    		 18.20 x 12.19 x 2.87 cm
    (7.17 x 4.8 x 1.13 in.)
    Note DisplayPort v1.1 supports up to 4Kx2K @ 30Hz. DisplayPort v1.1 supports up to 4Kx2K @ 30Hz.
    Diğer Özellikler
    Stok KoduATEN-CE920
    MarkaATEN
    Stok DurumuVar
    Garanti (Yıl)2
    4719264646775
